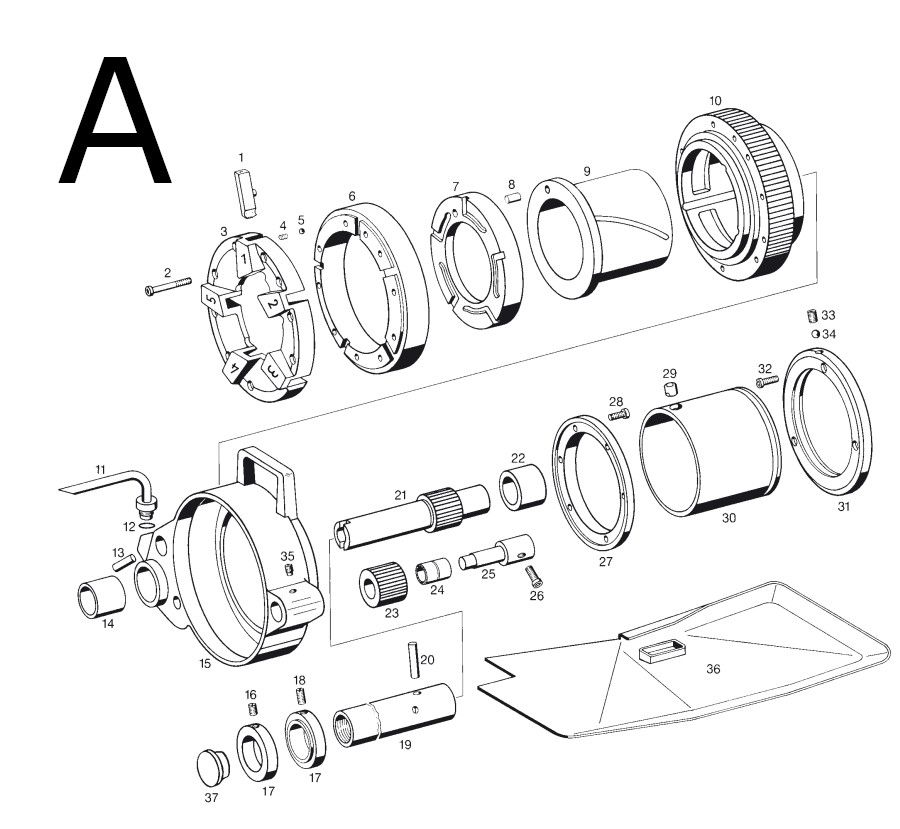

Diagram 1
Click For Bigger Image:

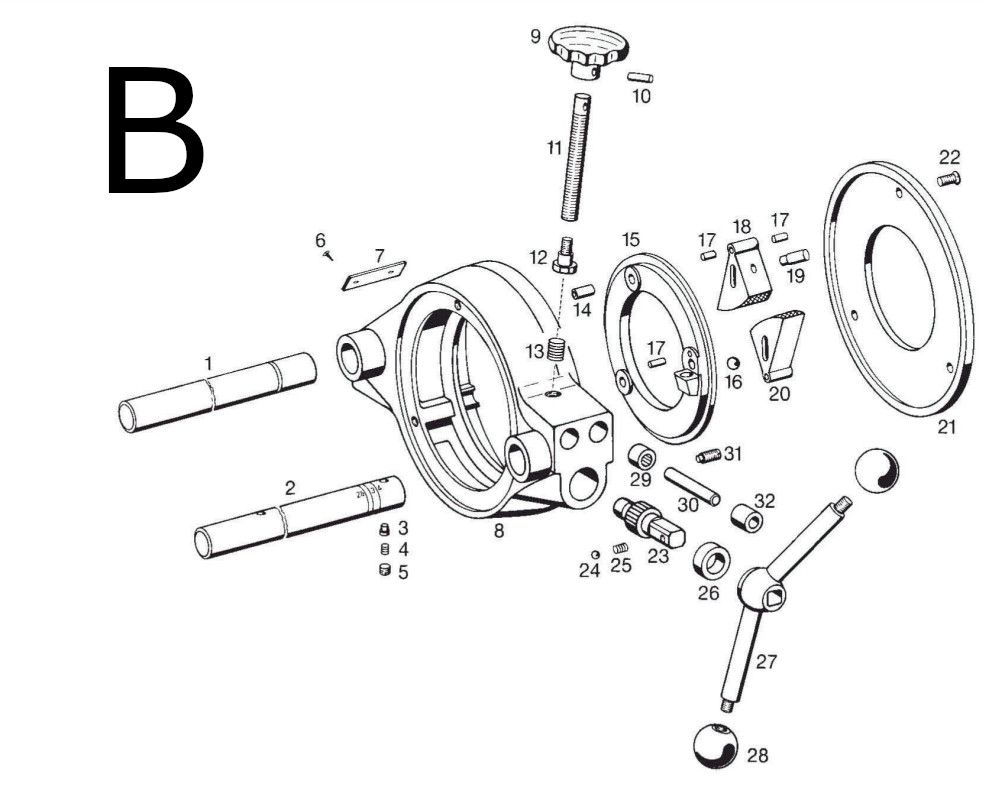

Diagram 2
Click For Bigger Image:
Click For Bigger Image
Draper Accessories > Draper Electrical Accessories > Draper Testers

Rems 4 Inch Automatic Die Head For Manual Threading Spare parts

Product Code: SPARE_4Inch_Automatic_Die_Head
Jump To Part
Name of Part & Product Reference
Price Ex VAT
Price Inc VAT
Quantity
A02
REMS Fillister head screw
Product Reference: REMS081036
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
A03
REMS Die holder mounted
Product Reference: REMS371000

(Pos. 3, 4 and 5)
£482.49 Ex VAT
£578.99 Inc VAT
£482.49 Ex VAT
Price £578.99 Inc VAT
ADD TO BASKET
A04
REMS Pressure spring
REMS Pressure spring
Product Reference: REMS371002
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
A05
REMS Steel ball
REMS Steel ball
Product Reference: REMS057047
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
A06
REMS Intermediate ring
Product Reference: REMS372007-R
£285.83 Ex VAT
£342.99 Inc VAT
£285.83 Ex VAT
Price £342.99 Inc VAT
ADD TO BASKET
A07
REMS Curve disk
Product Reference: REMS372010-R
£333.33 Ex VAT
£399.99 Inc VAT
£333.33 Ex VAT
Price £399.99 Inc VAT
ADD TO BASKET
A08
REMS Straight pin
Product Reference: REMS088058
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
A09
REMS Flange
Product Reference: REMS372008-R
£285.83 Ex VAT
£342.99 Inc VAT
£285.83 Ex VAT
Price £342.99 Inc VAT
ADD TO BASKET
A10
REMS Main wheel
Product Reference: REMS372006-R
£765.83 Ex VAT
£918.99 Inc VAT
£765.83 Ex VAT
Price £918.99 Inc VAT
ADD TO BASKET
A11
REMS Oil pipe compl.
Product Reference: REMS372030

( Pos. 11 and 12)
£109.99 Ex VAT
£131.99 Inc VAT
£109.99 Ex VAT
Price £131.99 Inc VAT
ADD TO BASKET
A12
REMS O-ring
Product Reference: REMS060003
£1.66 Ex VAT
£1.99 Inc VAT
£1.66 Ex VAT
Price £1.99 Inc VAT
ADD TO BASKET
A13
REMS Socket
Product Reference: REMS372016
£8.33 Ex VAT
£9.99 Inc VAT
£8.33 Ex VAT
Price £9.99 Inc VAT
ADD TO BASKET
A14
REMS Bearing bush
Product Reference: REMS058139
£50.83 Ex VAT
£60.99 Inc VAT
£50.83 Ex VAT
Price £60.99 Inc VAT
ADD TO BASKET
A15
REMS Housing
Product Reference: REMS372001-R
£516.66 Ex VAT
£619.99 Inc VAT
£516.66 Ex VAT
Price £619.99 Inc VAT
ADD TO BASKET
A16
REMS Threaded pin
Product Reference: REMS084004
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
A17
REMS Stop ring
Product Reference: REMS372019-R
£89.99 Ex VAT
£107.99 Inc VAT
£89.99 Ex VAT
Price £107.99 Inc VAT
ADD TO BASKET
A18
REMS Threaded pin
Product Reference: REMS084005
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
A20.1
REMS Straight pin
Product Reference: REMS372039
£17.49 Ex VAT
£20.99 Inc VAT
£17.49 Ex VAT
Price £20.99 Inc VAT
ADD TO BASKET
A20.2
REMS Drive shaft compl.
Product Reference: REMS372025

(Pos. 16,17,18,19, 20 and 37)
£242.49 Ex VAT
£290.99 Inc VAT
£242.49 Ex VAT
Price £290.99 Inc VAT
ADD TO BASKET
A21
REMS Drive pinion
Product Reference: REMS372003
£218.33 Ex VAT
£261.99 Inc VAT
£218.33 Ex VAT
Price £261.99 Inc VAT
ADD TO BASKET
A22
REMS Bush
Product Reference: REMS372002
£124.99 Ex VAT
£149.99 Inc VAT
£124.99 Ex VAT
Price £149.99 Inc VAT
ADD TO BASKET
A23
REMS Intermediate wheel
Product Reference: REMS372004
£163.33 Ex VAT
£195.99 Inc VAT
£163.33 Ex VAT
Price £195.99 Inc VAT
ADD TO BASKET
A24
REMS Needle bushing
Product Reference: REMS057043
£26.66 Ex VAT
£31.99 Inc VAT
£26.66 Ex VAT
Price £31.99 Inc VAT
ADD TO BASKET
A25
REMS Axle
Product Reference: REMS372005
£91.66 Ex VAT
£109.99 Inc VAT
£91.66 Ex VAT
Price £109.99 Inc VAT
ADD TO BASKET
A26
REMS Fillister head screw
Product Reference: REMS081040
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
A27
REMS Wearing ring
Product Reference: REMS372009-R
£168.33 Ex VAT
£201.99 Inc VAT
£168.33 Ex VAT
Price £201.99 Inc VAT
ADD TO BASKET
A28
REMS Fillister head screw
Product Reference: REMS081059
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
A29
[ NO LONGER AVAILABLE] REMS Sliding piece
Product Reference: REMS372015
No Longer Available
A30
REMS Sliding sleeve
Product Reference: REMS373003-R
£290.83 Ex VAT
£348.99 Inc VAT
£290.83 Ex VAT
Price £348.99 Inc VAT
ADD TO BASKET
A31
REMS Running ring
Product Reference: REMS373002-R
£179.99 Ex VAT
£215.99 Inc VAT
£179.99 Ex VAT
Price £215.99 Inc VAT
ADD TO BASKET
A32
REMS Fillister head screw
Product Reference: REMS081031
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
A33
REMS Threaded pin
Product Reference: REMS084029
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
A34
REMS Steel ball
Product Reference: REMS057051
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
A35
REMS Threaded pin
Product Reference: REMS084037
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
A36
REMS Chip tray
Product Reference: REMS372045
£70.83 Ex VAT
£84.99 Inc VAT
£70.83 Ex VAT
Price £84.99 Inc VAT
ADD TO BASKET
A37
REMS Plug
Product Reference: REMS060089
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
B01
REMS Guiding arm
Product Reference: REMS372014
£165.83 Ex VAT
£198.99 Inc VAT
£165.83 Ex VAT
Price £198.99 Inc VAT
ADD TO BASKET
B02
REMS Rack
Product Reference: REMS372011-R
£195.83 Ex VAT
£234.99 Inc VAT
£195.83 Ex VAT
Price £234.99 Inc VAT
ADD TO BASKET
B03
REMS Bolt
Product Reference: REMS372013
£6.66 Ex VAT
£7.99 Inc VAT
£6.66 Ex VAT
Price £7.99 Inc VAT
ADD TO BASKET
B04
REMS Pressure spring
Product Reference: REMS372012
£14.16 Ex VAT
£16.99 Inc VAT
£14.16 Ex VAT
Price £16.99 Inc VAT
ADD TO BASKET
B05
REMS Threaded pin
Product Reference: REMS084022
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
B06
REMS Grooved drive stud
Product Reference: REMS089008
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
B07
REMS 373013-R Plate
Product Reference: REMS373013-R
Contact Us For Price
B08
REMS Chuck housing
Product Reference: REMS373001-R
£429.99 Ex VAT
£515.99 Inc VAT
£429.99 Ex VAT
Price £515.99 Inc VAT
ADD TO BASKET
B09
REMS Clamping spindle compl.
Product Reference: REMS373010

(Pos. 9, 10 and 11)
£85.83 Ex VAT
£102.99 Inc VAT
£85.83 Ex VAT
Price £102.99 Inc VAT
ADD TO BASKET
B10
REMS Star grip
Product Reference: REMS373014
£44.16 Ex VAT
£52.99 Inc VAT
£44.16 Ex VAT
Price £52.99 Inc VAT
ADD TO BASKET
B12
REMS Driving bolt
Product Reference: REMS373007
£30.83 Ex VAT
£36.99 Inc VAT
£30.83 Ex VAT
Price £36.99 Inc VAT
ADD TO BASKET
B13
REMS Threaded insert
Product Reference: REMS058013
£15.83 Ex VAT
£18.99 Inc VAT
£15.83 Ex VAT
Price £18.99 Inc VAT
ADD TO BASKET
B14
REMS Clamping sleeve
Product Reference: REMS088043
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
B15
REMS Adjusting ring mounted
Product Reference: REMS373015

(Pos. 14, 15 and 17)
£118.33 Ex VAT
£141.99 Inc VAT
£118.33 Ex VAT
Price £141.99 Inc VAT
ADD TO BASKET
B16
REMS Steel ball
Product Reference: REMS057052
£4.16 Ex VAT
£4.99 Inc VAT
£4.16 Ex VAT
Price £4.99 Inc VAT
ADD TO BASKET
B17
REMS Spiral pin
Product Reference: REMS088067
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
B18
REMS Clamping jaw with bolt
Product Reference: REMS373026

(Pos. 17, 18 and 19)
£134.99 Ex VAT
£161.99 Inc VAT
£134.99 Ex VAT
Price £161.99 Inc VAT
ADD TO BASKET
B20
REMS Clamping jaw
Product Reference: REMS353020

(Pos. 17 and 20)
£129.16 Ex VAT
£154.99 Inc VAT
£129.16 Ex VAT
Price £154.99 Inc VAT
ADD TO BASKET
B21
REMS Cover
Product Reference: REMS373006-R
£188.33 Ex VAT
£225.99 Inc VAT
£188.33 Ex VAT
Price £225.99 Inc VAT
ADD TO BASKET
B22
REMS Countersunk screw
Product Reference: REMS082011
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
B23
REMS Pinion mounted
Product Reference: REMS373018

(Pos. 23, 24, 25 and 26)
£168.33 Ex VAT
£201.99 Inc VAT
£168.33 Ex VAT
Price £201.99 Inc VAT
ADD TO BASKET
B24
REMS Steel ball
Product Reference: REMS057048
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
B25
REMS Pressure spring
Product Reference: REMS753070
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
ADD TO BASKET
B26
REMS Bearing ring
Product Reference: REMS373005
£28.33 Ex VAT
£33.99 Inc VAT
£28.33 Ex VAT
Price £33.99 Inc VAT
ADD TO BASKET
B27
REMS Drive and clamping lever compl
Product Reference: REMS753306

(Pos. 27 and 28)
£134.99 Ex VAT
£161.99 Inc VAT
£134.99 Ex VAT
Price £161.99 Inc VAT
ADD TO BASKET
B28
REMS Knob
Product Reference: REMS071045
£9.16 Ex VAT
£10.99 Inc VAT
£9.16 Ex VAT
Price £10.99 Inc VAT
ADD TO BASKET
B29
REMS Supporting roller
Product Reference: REMS057044
£114.16 Ex VAT
£136.99 Inc VAT
£114.16 Ex VAT
Price £136.99 Inc VAT
ADD TO BASKET
B30
REMS Straight pin
Product Reference: REMS088059
£6.66 Ex VAT
£7.99 Inc VAT
£6.66 Ex VAT
Price £7.99 Inc VAT
ADD TO BASKET
B31
REMS Threaded pin
Product Reference: REMS084038
£2.49 Ex VAT
£2.99 Inc VAT
£2.49 Ex VAT
Price £2.99 Inc VAT
ADD TO BASKET
B32
REMS Bearing bush
Product Reference: REMS373004
£25.83 Ex VAT
£30.99 Inc VAT
£25.83 Ex VAT
Price £30.99 Inc VAT
ADD TO BASKET
Spare Parts World

Unit 3 Electric Avenue
Gilmoss Industrial Estate
Liverpool, L11 0EL

Call: 0151 207 1400

Enquiries
info@sparepartsworld.co.uk
About Us
Over 10,000 spare parts stocked for popular brands such as Black + Decker, Dewalt and ELU. We also stock a range of brand new power tools and tool accessories
Quick Links
About Us Contact Us Delivery Charges Returns & Refunds Privacy Security Terms & Conditions

Sign In Register Meet The Team Brands Full Product Index Help Page
Follow Us
Twitter Facebook Linked In
© Power Tool Centre Ltd trading as Spare Parts World 2025
Powered By TABS For Tools
