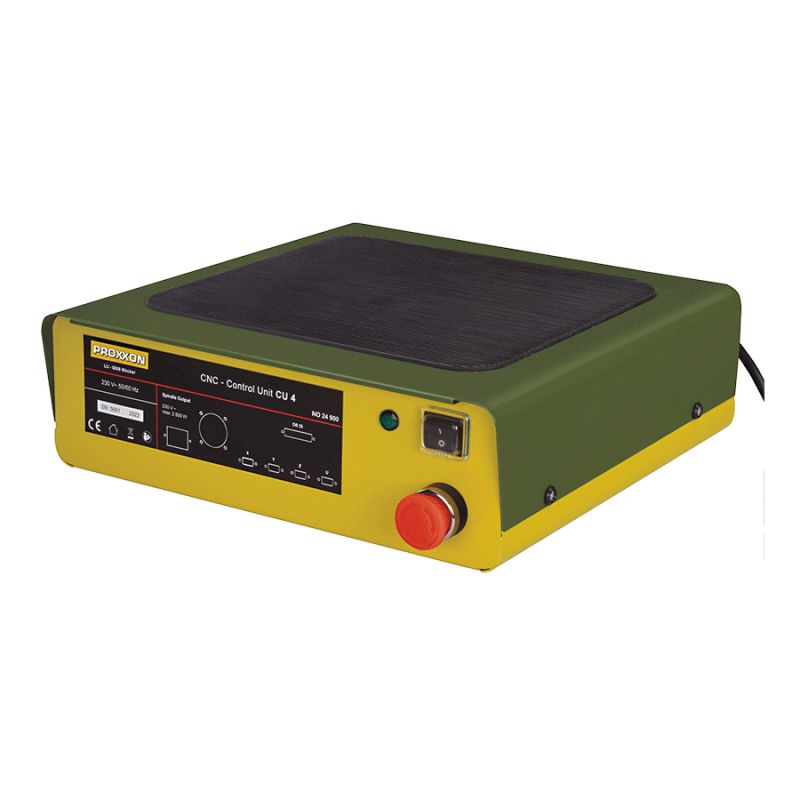

EstimatedProxxon 24900 CNC Control Unit CU 4 for MF 70/CNC-ready and FF 500/BL-CNC-ready Lathe
For operating CNC lathes and milling machines with up to four axes. Ready for use, powerful and safe.
Free choice of CNC-software: e.g. MACH3/4 (milling or turning), Estlcam (milling) may be used for operation via parallel-port (if necessary with use of LPT-adaptor). Four powerful micro step drivers (norm-interface SUB-D 9-pole) always provide enough energy for any machining processes. One feedback signal (e. g. limit switch) each for each axis.
Switching relay for 230V-outlet (IEC-socket and protective contact socket) for spindle powering or special functions up to 2,500W.
Solid main housing made of 1.2mm steel plates (powder-coated) with large grooved rubber mat for tool storage.
Technical data:
230V. 50/60Hz. Dimensions 330 x 300mm. Height 100mm. Weight approx. 4.5kg. Insulated to class 1.
