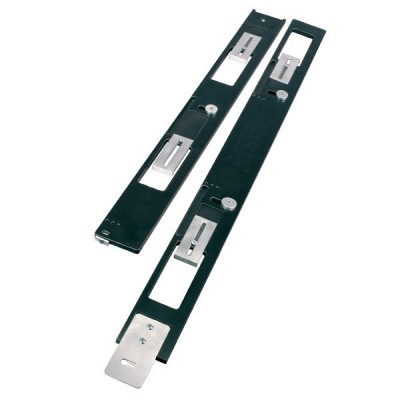

Trend H/JIG/B Two Part Door Hinge Recess Jig B for 16mm - 51mm Thick Doors

A two part trade hinge jig to cut hinge recesses in doors & linings.
Hard wearing template in 12mm phenolic plastic.
Two part, splits into two lengths with dovetail joint.
One set up for door and frame. No need to adjust for repeated doors.
Four adjustable apertures.
For a 2 metre door hinges are 6 inch down and 9 inch up and the middle. Fourth hinge for fire doors (355mm /14 inches down from top of top hinge).
For doors 16mm to 51mm thick with separate (plant on) stops, or stops thinner than 11mm.
Swivel end plate for 3mm gap to head of door.
Use with a light duty plunge router with 1/4 inch collet.
Includes three edge guides, three bradawls and 16 mm guide bush.
Unibase may be needed.
Patent No. GB2285410.
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Dimensions:
Hinge size
Length=50 mm (2") to 127 mm (5")
Width min.=9.5 mm (3/8")
Width max.=35 mm (1 3/8")

Door size possible
Height min=1955 mm (6' 5")
Height max.= 2100 mm (6' 10")*
Thickness min.= 16 mm (5/8")
Thickness max.=51 mm (2")
* Please note for doors over 2000mm the bottom hinge will be higher than 9" up.
