Festool 496938 Stopper LA-LR 32 FS

Festool 496938 Stopper LA-LR 32 FS

For routers OF 900, OF 1000, OF 1010, OF 1400 in the FS-LR32 hole drilling system

Functions
Holes in series

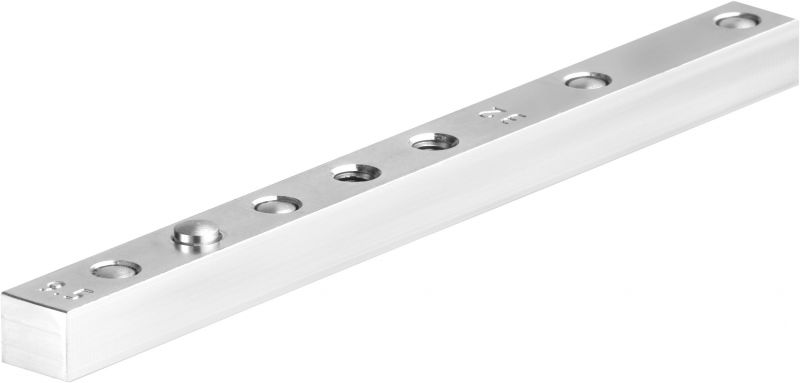

The stopper is part of the LR 32 hole series set and serves to position the first hole on the hole series guide rail at a distance of 9.5, 16 or 32 mm from the workpiece edge.

• The three standard edge clearances of 9.5, 16 and 32 mm can be set with repeat accuracy when installing the stopper on the hole series guide rail
• The LR 32 set can be supplemented with these additional stoppers, if for instance a second guide rail with a different measurement should be prepared
• Very precise production for equally precise results
• Setting dimensions are imprinted so that they're easily visible
• positions the first hole on the hole series guide rail at a distance of 9.5, 16 or 32 mm from the workpiece edge

Usage
Main applications

• Preparing holes series with 32 mm spacing
• Drilling of fittings like cupboard hinges

Technical Information

• Weight          0.313 kg
• Dimensions      23.2 × 5.7 × 3.5 mm
