Functions

Ogee cutters are versatile in use. They are for profiling a workpiece or – with the appropriate flute cutter – for producing a counterprofile.

• Various profiles can be routed by using various ball bearing guide diameters
• Two carbide blades ensure a long service life
• The ball bearing mount can be quickly and efficiently replaced via a screw
• with ball bearing guide
• the router can be used with the 12.7 dia. ball bearing for rounding and with the 9.5 dia. ball bearing for round-edge cutting
• carbide blades

Main applications

Profiling of solid wood and panel materials

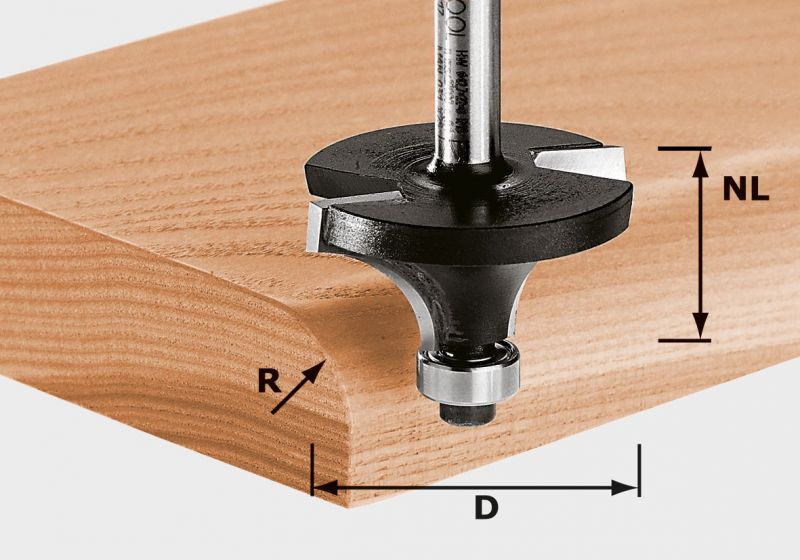

Technical details

Diameter: 63mm
Effective length (NL): 32mm
Total length (GL): 82mm
Radius: 25mm
Shank diameter: 12mm
