Bosch 1609B02590 Armature

The Bosch

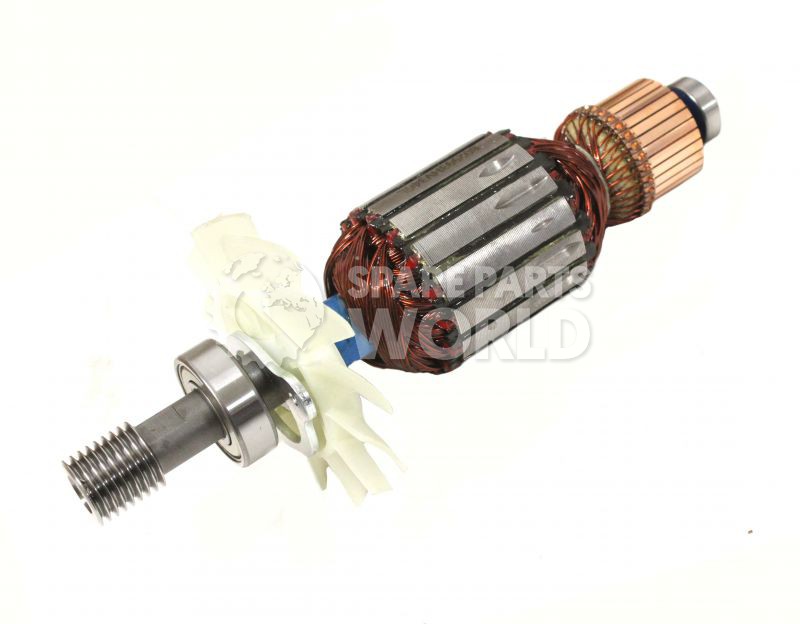

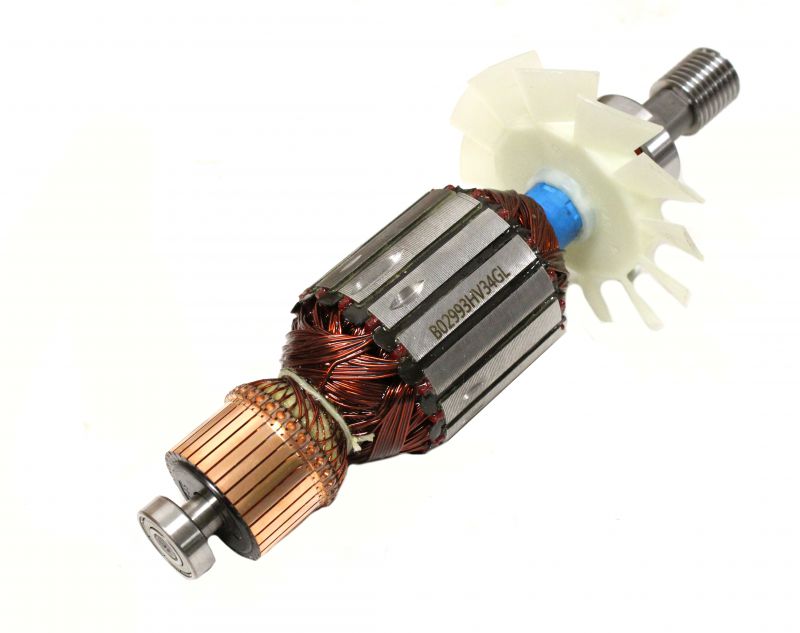

1609B02590 Armature

is a genuine replacement component designed for specific Bosch power tools, notably the GCM 12 GDL Slide Mitre Saw. This armature is identified as part number 803 in the tool's schematic diagrams. Its primary function is to serve as the central rotating element within the tool's motor, converting electrical energy into mechanical motion to drive the saw's cutting action.

Compatible models include various configurations of the GCM 12 GDL, such as:

3601M23600 GCM 12 GDL Slide Mitre Saw 230 V / EU
3601M23670 GCM 12 GDL Slide Mitre Saw 230 V / GB
3601M23680 GCM 12 GDL Slide Mitre Saw 220 V / CN
3601M23690 GCM 12 GDL Slide Mitre Saw 230 V / SMA
3601M236B0 GCM 12 GDL Slide Mitre Saw 220 V / ROK
3601M236E0 GCM 12 GDL Slide Mitre Saw 220 V / BR
3601M236H0 GCM 12 GDL Slide Mitre Saw 220 V / AR
3601M236K0 GCM 12 GDL Slide Mitre Saw 230 V / ASI
3601M236L0 GCM 12 GDL Slide Mitre Saw 240 V / MAL
3601M236P0 GCM 12 GDL Slide Mitre Saw 230 V / SMA
Installing the Bosch 1609B02590 Armature ensures optimal performance and longevity of the compatible tools by maintaining efficient motor operation.
